Shimadzu Japan Weighing Balances
Shimadzu Corporation was established in 1875 in Kyoto, Japan, as one of the pioneers of scientific instruments.
Top-pan and torsion balance production started in 1918, and equal-beam analytical balances were introduced in 1925. Since their release, the continuous improvement of Shimadzu balances has contributed to research and development across all industries.
Around the turn of the 20th Century, precision weighing was a time – consuming practice performed only by experienced operators.
Unibloc Electronic Moisture Balance MOC63u
MOC 63uUnibloc Moisture AnalyzerSpecification :Capacity:Max : 60gMin : 0.02gMinimum Readability : 0.001g0.01/0.1%(Selectable)Repeatability : 0.15%(2g)0.05%(5g)0.02%(10g)Drying Heater : Straight type halogen heaterPower : 400 WTemperature range setting : 50-200°C(1°C increments)(There is a time restrication when exceeding 180°C)Display : LCD with backlightPan Size : Ø95mmDimension (WxDxH) mm : 202x336x157Weight : 4kgOperational temperature and humidity range : 5 to 40°C , 85% RH or lowerMeasurements Modes:Standard (Easy start/Automatic end/Timed end)Rapid Drying (Easy start/Automatic end/Timed end)Slow Drying (Easy start/Automatic end/Timed end)Step Drying (Easy start/Automatic end/Timed end
Timer Setting : 1-120 minutes or continuous ( max 12 hours)Interface : RS-232C(9-pin connector) I/O portUSB PortMeasurement conditions data memory : 10Data Memory : 100Make : Shimadzu
Features
Excellent performance for a wide variety of applications in multiple industries
In many fields, a moisture analyzer is a necessary tool for quality control requirements. With theMOC63u, you can easily obtain accurate data. Simply place material on the pan and shut the cover.The MOC63u will start to measure. The MOC63u adapts to various materials and increases your workefficiency.
Halogen heaterLong-life and high power halogen heater provides quick and accurate measurement.The temperature can be changed from 50 degrees to 200 degree Celsius.You can check sample status from window while measurement.
Large pan size: 95mm dia
MOC63u has large pwn. (95mm diameter)It can provide quick and accurate measurement to spread sample in thin layer on the pan.Data management and easy operationBuilt-in USB portThe measure results can be transferred by USB cable.If connect with PC by USB, needs USB driver.WindowsDirectSend balance data to Excel or other Windows applications without installing additional datacommunication software. By combining standard Auto print functions with typical spreadsheetfunctions, even difficult applications can be easily automated.You can create graphs easily with WindowsDirect and Excel.If you need templates, please download from here. (xls/69KB)Connection to Windows Vista and Windows7.
Easy operation using a simple keypad
Features easy-to-operate software and keypad layout. In addition, an automatic starting mode savesmeasurement time, increasing your work efficiency. Operation simply requires ‘putting material on thepan and shutting the cover’. Internal memory can save 10 measurement conditions and 100 results.Various measurement modes provide extra support.

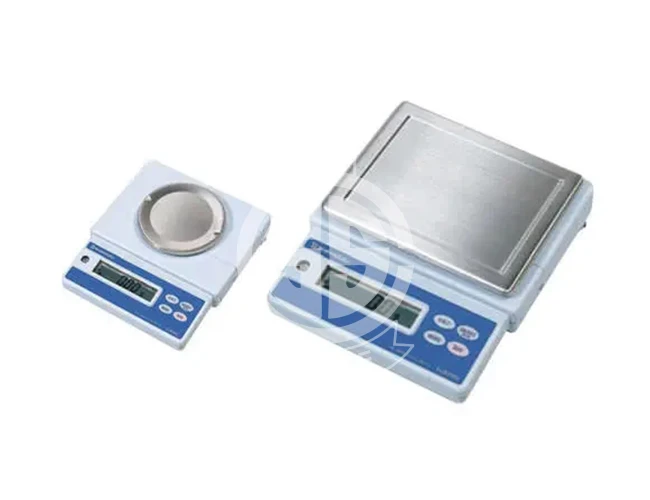

10mg Electronic Portable Balance Elb300
Specifications
Model : ELB 300
Capacity : 300 gms
Readability : 0.01 g
Volts : 12 V DC
Taring Range : 0gms to capacity
Ambient Temp. : 5-35Deg.C
Piece Counting Function
% Display Function
Specific Gravity Measurement
S/ W Function
Zero-tracking Function
Auto power off
Various units availableDATA I/ O (For electronic printer, RS 232C interface)Pan Size: 110mm diaDimensions : 185W x 215D x 55Hmm approx.Weight (approx.) : 1.25kgs (without batteries)Std. accessories : Battery-holder, In-use protective keypad coverMake : Shimadzu
FEATURESDry battery operation makes it readily portable, with no compromise in accuracy.High sensitivity and stabilityInternal resolution is 1/40,000. This provides extra capability in accuracy.Quick responseAfter placing the sample, stable result is quickly displayed.Various application modesPiece counting mode, percent display mode, and specific gravity mode can be called simply by keytouch.Specific gravity measurementOptional specific gravity kit is available for extra efficiency.Digital stability controlBest measurement modes depending on the purpose and environment can be selected with ease.Two-way power supply (AC or Battery operation)
Batteries can be replaced easily without turning the balance over.Optional measurement modes depending on the purpose and environment can be selected with ease
0.1mg Analytical Balance Atx224 Internal Calibration
Specifications
Features for ATX/ATY series 224New standard of analytical balance
ATX/ATY series realized superior performance and budget price with Shimadzu weighingsensor UniBloc.This model achieve usability and high accuracy as analytical balance.Touch-Key calibration (ATX series)Automated calibration can be started by pressing keys. Also, your external calibrationweightscan be used for span calibration (all models)Easy Setting best fit to weighting applicationQuickly adjust the
0.1mg Analytical Balance Aty224 External Calibration
Specifications
ATY 224SHIMADZU UNIBLOC ANALYTICAL BALANCE ATY 224Specifications Model : ATY 224Capacity : 220 gmsMinimum Display : 0.1mgPan Size : Ø 91Main Body Dimensions (mm) approx. : 210(W) x 340(D) x 325 (H)Weight (kg) approx. : 6.0 KgPower Requirement : 12V, 1ATouch-key CalibrationEasy setting Best fit to weighing applicationExpanded piece counting functionComaparator functionFormulation modeWindows Direct Communications Function
0.01mg Analytical Balance, Dual Range Semi Micro Balance
AUW 220D
AUW220D Specifications:
Model : AUW220D
Capacity : 220g/ 82g
Readability : 0.1mg/ 0.01mg
Volts : 12 V DC
Make : Shimadzu
Std deviation : < 0.1 mg – large range< 0.05 mg – small range
Linearity : +/- 0.2 mg – large range+/- 0.1 mg – small range
Response time : 3 secs. – large range15 secs. – small rangeOperating ambient Temp. : 5 to 40 Deg.CTemp. coefficient of sensitivity (10 to 30 Deg.C) : +/-2ppm/ Deg.C (When PSC is OFF)Sensitivity stability against temp. change (When PSC is ON, 10 to 30 Deg.C): +/-2ppmPan Size : 80mm dia approx.Body Dimensions : 220mmW x 330mmD x 310mmH approx.Weight : 7kgs. approx.Various units availableBuilt-in calibration weightPerfect Self Calibration functionClock Calibration functionBuilt-in Clock function
GLP/ GMP/ ISO Calibration ReportWindows Direct functionInterval Timer OutputRS-232 I/ FSpecific gravity measurement softwarePiece Counting function% display functionUnit Conversion functionAnalog Display function
Features for AUW-D/AUW/AUX/AUY SeriesAUW-D dual-range semi-micro balances are the world”s first five-decimal balances with theadvantages of UniBloc one-piece force cell technology.
Choose one of the two models according to your requirementsExcellent response, stability and zero return performance in a semi-micro balance.Automatic span calibrationChoice of fully-automatic calibrations: PSC and Clock -CALOperator can choose from two types of fully-automatic span calibration methods. “PSC” is initiatedbased on temperature change detection, and “Clock-CAL” operates at user pre-set times (up to threetimes a day).Fully-automatic calibration Clock-CAL
Automatic calibration at user-preset times.The balance automatically performs calibration at selected times, up to three times a day (e.g. beforestarting work, during lunch-break or after work).PDF
Fully-automatic calibration PSC
The balance detects variations in the ambient temperature that influence accuracy and automaticallyperforms calibration to compensate it.Data managementGLP/GMP/ISO calibration report
Calibration report can be automatically printed with the optional electronic printer. Date, time, serialnumber and ID are also output to meet GLP/GMP/ISO requirements.WindowsDirect functionThe balance communicates directly to a PC with Windows® applications. No additional software isneeded to interface with spreadsheets, databases, word processing, and laboratory software.WindowsDirect works with Windows® 95, 98, 2000, NT4.0, ME and XP. PC must be IBM PC/ATcompatible.Application supportInterval timerWeighed data can be output to external devices at user pre-set intervals.Piece counting modeFormulation modeSpecific gravity measurementBelow-weigh hook for Hanging measurement
1mg Top Loading Balances BL 220H
Specifications
Capacity : 220 gms
Readability : 0.001g
Volts : 12 Vdc
Make : Shimadzu
Repeatability (Std. Deviation)
Features
