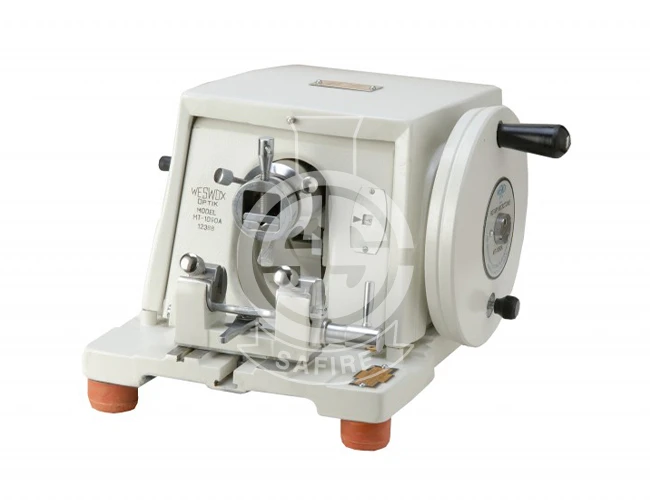

Advance Rotary Microtome (Latest)
| Brand | Model |
|---|---|
| SAFIRE | MRM-1120 |
Advance rotary microtome (latest “spencer” 820 type)
model : mrm-1120
Supplied complete with object holder, dust cover, oil can, knife 120mm & honing stone. Disposable blade holder and erma japan (pack/50) disposable blade.
Rotary Microtome MRM-RM
| Portable | Yes |
|---|---|
| Model | MRM-RM |
| Brand | SAFIRE |
Specification
- Adjustable cutting angle
- Easy to position at zero value
- Durable fabrication
Specification
| Section Thickness Setting | From 0.5 µm-2 µm in 0.5µm increments |
|---|---|
| From 2 µm-20 µm in 1 µm increments | |
| From 20µm-60 µm in 5 µm increments | |
| Trimmming Thickness | 10 µm-6 µm |
| Vertical Stroke | 60 m |
| Specimen Orientation | Horizontal 8°, Vertical 8° |
| Object Feed | 28 mm |
| Max. Sectioning Area | 60 mm x 50 mm |
| Dimensions | |
| Widht(Incl.Handwheel) | 460 mm |
| Depth(Incl.Waste tray) | 500 mm |
| Height(Total) | 300 mm |
| Working Height(Knife Edge) | 105 mm |
| Weight(without acc.) | 23 kg. (Approx) |

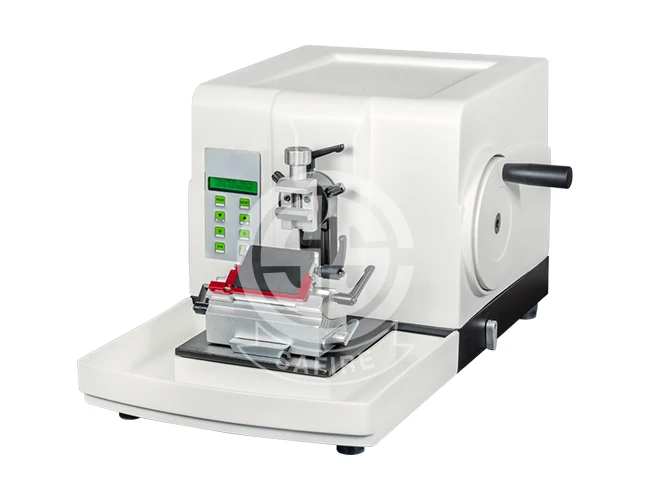

Semi Automatic Microtome MRM-ST
| Brand | Model |
|---|---|
| SAFIRE | MRM-1120 |
Features
- Automatic, specimen retracting mechanism
- Uniform sectioning
- Stainless steel chamber
Other Specification
- Section thickness Setting range : 0.25~60 µm
- Trimming thickness setting range : 0.25~60 µm
- Setting values : 0.25~1 µm increment step 0.25 µm, 1~10 µm increment step 1 µm, 10~20 µm increment step 2 µm, 20~60 µm increment step 5 µm
- Minimum setting value : 0.25 µm
Specification
| SPECIFICATIONS: | MRM-ST |
|---|---|
| Section Thicness Setting | 0.5-100µm |
| Setting Values | From 0.5µm-5µm in 0.5µm increments |
| From 5µm-20µm in 1 µm increments | |
| From 20µm – 60µm in 5µm increments | |
| From 60µm -100µm in 10µm increments | |
| Trimming Thickness setting | 1µm – 600µm |
| Specimen Retraction Range | 5-100µm in 5µm increments |
| Minimum Setting Value | 0.5µm |
| Object Feed | 28mm |
| Vertical Stroke | 60mm |
| Specimen Horizontal feed | 28mm |
| Max. Specimen Size | 50×50 mm |
| Operation | Semi-Automatic |
| Dimensions (LxWxD) | (520x430x330) mm |
| Weight | 24kg |
| Nominal Voltage | 220v, Hz/ 110v, 60Hz |
| Power Draw | 150VA |

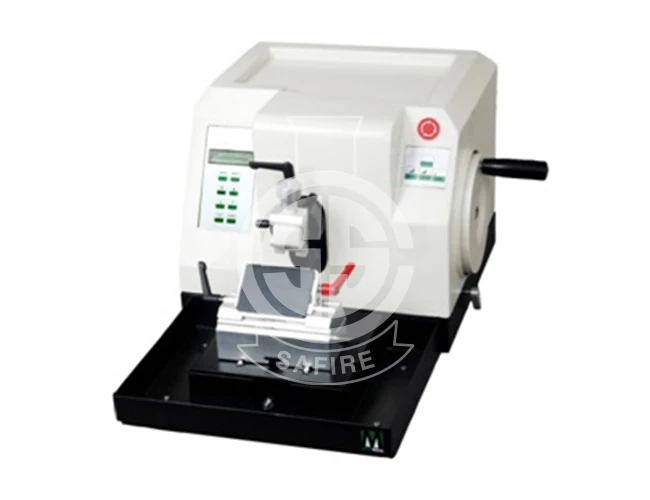

Fully Automatic Microtome MRM-AT
| Brand | Model |
|---|---|
| SAFIRE | MRM-1120 |
- Section thickness setting range : 0.5~100 µm
- Trimming thickness setting range : 1~600 µm
- Setting values : 0.5~2 µm increment step 0.5 µm, 2~10 µm increment step 1 µm, 10~20 µm increment step 2 µm, 20~100 µm increment step 5 µm
- Minimum setting value : 0.5µm
- Vertical specimen stroke : 60 mm
Specification
| SPECIFICATIONS: | MRM-AT |
|---|---|
| Section Thickness Setting | From 0.5µm -2µm in 0.5µm increments |
| Setting Value | From 2µm -10µm in 1µm increments |
| From 10µm -20µm in 2µm increments | |
| From 20µm – 100µm in 5µm increments | |
| Trimming Thickness | 1µm-600µm |
| Setting Value | 1-10µm in 1µm increment |
| 10-20µm in 2µm increment | |
| 20-100µm in 10µm increment | |
| 100-600µm in 50µm increment | |
| Object Feed | 28mm |
| Vertical Stroke | 60mm |
| Specimen Retraction | 20µm |
| Max. Specimen Size | 50×50 mm |
| Specimen Clamp Orientation | 360° |
| Nominal Voltage | 100/120/230/240V AC±10% |
| Nominal Frequency | 50-60Hz |
| Power Draw | 200VA |
| Dimensions | |
| Width(incl.hand wheel ) | 580mm |
| Depth (incl.waste tray) | 360mm |
| Height(total) | 310mm |
| Weight | 35kg |

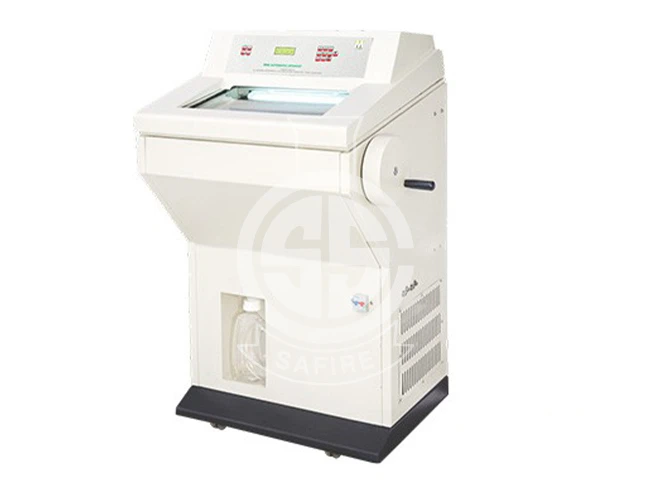

Cryostat Microtome Manual MCM-MT
| Brand | Model |
|---|---|
| SAFIRE | MRM-1120 |
Features
- Specimen retraction mechanism for avoiding blade injuries
- Button operated trimming procedures
- Longer serviceability
Available In
- Semi Automatic Cryostat Microtome Machine
- Fully Automatic Cryostat Microtome Machine
Other Details
- Specimen retraction function protects the specimen from blade injury
- Trimming/Sectioning button makes it easy to switch to the desired mode
- Rapid Refrigeration Mode allows desired temperature drop in 60mins
- Working area is easy to clean and disinfect
- Easy to read LED screen
- Ergonomic design
Specifications
- Sectioning Thickness Range :1 µm- 30 µm, in 1 µm increments
- 30µm-60µm, in 5µm increments
- Trimming Thickness Range : 30 µm-95 µm, in 5 µm increments
- Freeze Shelf Lowest Temp. : -40°C
- Cooling down time to -30°C : 60 mins
- Lowest temp. of Peltier unit on : -55°C freeze shelf

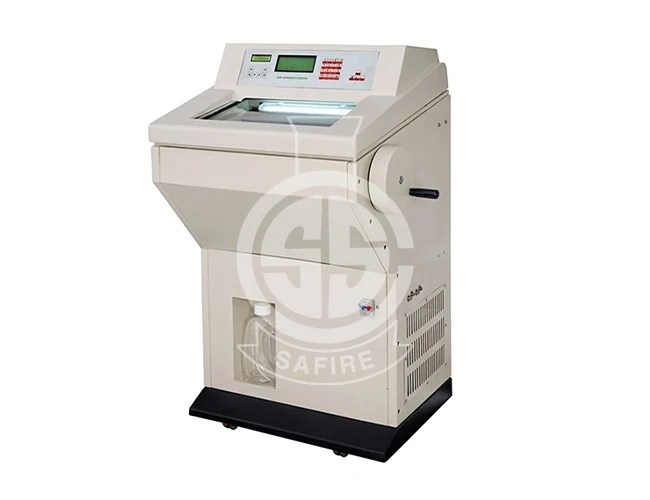

Cryostat Microtome Semi Automatic
MCM-ST
| Brand | Model |
|---|---|
| SAFIRE | MRM-1120 |
Features
- Uniform sectioning procedure
- Hard wearing construct
- Longer service life
Specifications
| SPECIFICATIONS | |
|---|---|
| Section Thickness Setting | 1 – 60 µm |
| Increment Range (i) | 1-10 µm in 1 µm increment |
| Increment Range (ii) | 10-20 µm in 2 µm increments |
| Increment Range (iii) | 20-60 µm in 5 µm increments |
| Trimming Range | 10-100 µm in 10 µm increments |
| Maximum Specimen Size | 35 x 35 mm |
| Horzontal Specimen Feed | 25mm |
| Vertical Specimen Stroke | 65mm |
| Motorized Coarse Feed | 480 µm / sec. |
| Specimen Retraction | 5-75 µm , in 1 µm increments |
| Specimen Orientation | 8° (X,Y axis) |
| Cryo Chamber Temp. | -1 to -30°c Adjustable |
| Cooling Downtime to -30°c | 60 mins. |
| Quick Freeze Shelf | ≤- 50°c |
| Chamber Defrosting | Programmable or Manual |
| Lowest Temp. Of Peltier Unit | – 50°c |
| No. of Freezing Stations | 10 |
| Voltage | 220V |
| Dimensions(WxDxH) | 660 x 640 x 1130 mm |
| Weight | 140 kgs. |
Cryostat Microtome Fully Automatic
| Brand | Model |
|---|---|
| SAFIRE | MRM-1120 |
Features
- Uniform sectioning procedure
- Hard wearing construct
- Longer service life
Specifications
| SPECIFICATIONS | |
|---|---|
| Section Thickness Setting | 1 – 60 µm |
| Increment Range (i) | 1-10 µm in 1 µm increment |
| Increment Range (ii) | 10-20 µm in 2 µm increments |
| Increment Range (iii) | 20-60 µm in 5 µm increments |
| Trimming Range | 10-100 µm in 10 µm increments |
| Maximum Specimen Size | 35 x 35 mm |
| Horzontal Specimen Feed | 25mm |
| Vertical Specimen Stroke | 65mm |
| Motorized Coarse Feed | 480 µm / sec. |
| Specimen Retraction | 5-75 µm , in 1 µm increments |
| Specimen Orientation | 8° (X,Y axis) |
| Cryo Chamber Temp. | -1 to -30°c Adjustable |
| Cooling Downtime to -30°c | 60 mins. |
| Quick Freeze Shelf | ≤- 50°c |
| Chamber Defrosting | Programmable or Manual |
| Lowest Temp. Of Peltier Unit | – 50°c |
| No. of Freezing Stations | 10 |
| Voltage | 220V |
| Dimensions(WxDxH) | 660 x 640 x 1130 mm |
| Weight | 140 kgs. |

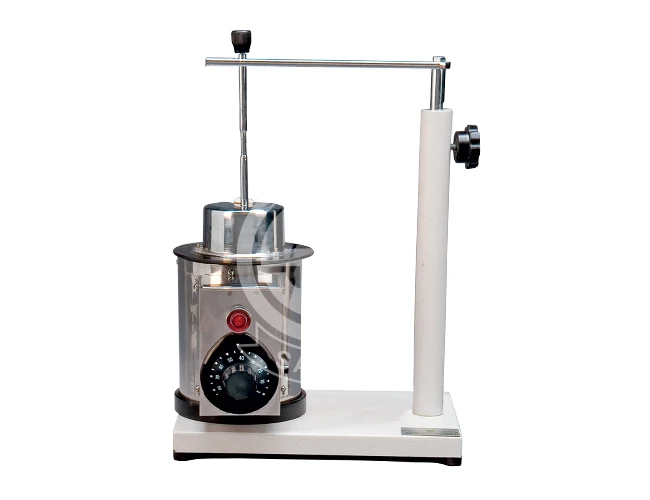

Tissue Processor Manual MTP-20
| Brand | Model |
|---|---|
| SAFIRE | MTP-20 |

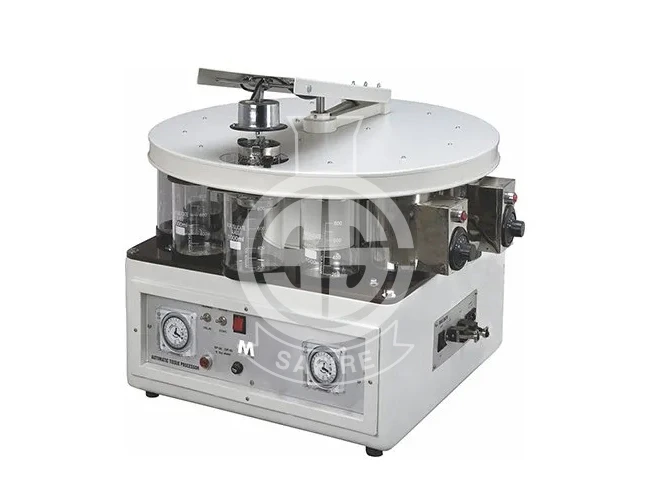

Tissue Processor Auomatic MTP-M-111
| Brand | Model |
|---|---|
| SAFIRE | MTP-M-111 |
Automatic tissue processor is based on pin up timer for programming both delay and processing cycle and need of cutting plier for programming.
Number of stations : 12
Reagent stations : 10
Paraffin wax bath station : 2
Delay start : upto 24hrs
Safety device : yes
Basket rotation : yes (4 rpm)
Supplied complete as above with 10 reaegent beakers, 2 wax bath thermostatically controlled capacity : 1ltr. , 24 s. S. Tissue cassettes, 1 ss basket, dust cover and operational manual.
Tissue Processor Automatic MTP-M-211
| Brand | Model |
|---|---|
| SAFIRE | SAFIREMTP-M-211 |
Automatic tissue processor is based on pin up timer for programming both delay and processing cycle and need of cutting plier for programming.
Number of stations : 12
Reagent stations : 10
paraffin wax bath station : 2
Delay start : upto 24hrs
Safety device : yes
basket rotation : yes (4 rpm)
Supplied complete as above with 10 reaegent beakers, 2 wax bath thermostatically controlled capacity : 2ltr. ,24 s. S. Tissue cassettes, 1 ss basket, dust cover and operational manual.

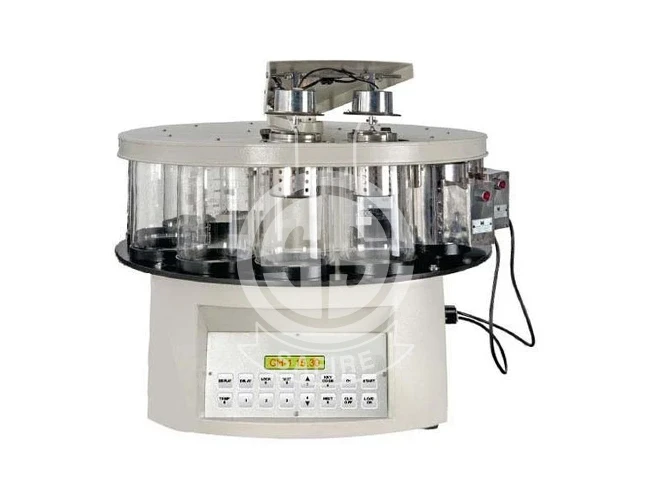

Tissue Processor Microprocessor Based MTP-E-111
| Brand | Model |
|---|---|
| SAFIRE | MTP-E-111 |
The unit comes with a membrane keypad and lcd display for programming the timing sequence & temperature setting.
technical specifications :
Number of stations : 12
Reagent stations : 10
Paraffin wax bath station : 2
Delay start : upto 99hrs
Infiltration time of each station : 1 min to 16hrs 39 mins
Safety device : yes
Supplied complete as above with 10 reagent beakers, 2 wax bath capapcity 1 ltr. , 24 s. S. Tissue cassettes, 1 s. S. Basket, dust cover and operating manual.
Tissue Processor Latest Microprocessor Based MTP-EP-111
| Brand | Model |
|---|---|
| SAFIRE | MTP-EP-111 |
The unit comes with large graphical lcd display and membrane keypad which makes it user friendly. It has a programmable memory upto 9 programs and with advance safety device.
Technical specifications :
Number of stations : 12
Reagent stations : 10
Paraffin wax bath station : 2
Programmable memory : 9 Programs
Delay start : upto 9days
Infiltration time of each station : 1 min to 99hrs 59 mins
Supplied complete as above with 10 reagent beakers, 2 wax bath capapcity 1 ltr. , 24 s. S. Tissue cassettes, 1 s. S. Basket, dust cover and operating manual.
Tissue Processor Latest Microprocessor Based MTP-EP-211
| Model | MTP-EP-211 |
|---|---|
| Brand | SAFIRE |
The unit comes with large graphical lcd display and membrane keypad which makes it user friendly. it has a programmable memory upto 9 programs and withadvance safety device.
Technical specifications :
Number of stations : 12
Reagent stations : 10
Paraffin wax bath station : 2
Programmable memory : 9 programs
Delay start : upto 9days
Infiltration time of each station : 1 min to 99hrs 59 mins
Supplied complete as above with 10 reagent beakers, 2 wax bath capapcity 2 ltr., 24 s.s.tissue cassettes, 1 s.s. basket, dust cover and operating manual.

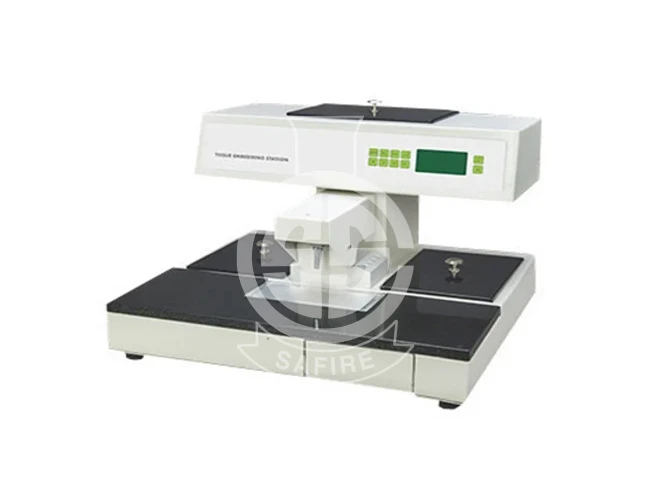

Tissue Embedding Unit MTC-TE
| Brand | Model |
|---|---|
| SAFIRE | MTC-TE-3LITRE |
Tissue embedding unit has independent heating zones that are controlled through a microprocesor. It has a large storage tank, the tank incorporates the filter which ensures continuous flow of paraffin from the tank. The flow of paraffin from the tank can be controlled manually or through foot switch. The heated operation platform and the forceps holder makes it easy to embed the tissues. The unit has a storage tank, preservation boxes, forceps holder, parafiin nozzle whose heating can be controlled through microprocessor and it can be programmed for the weekdays for both on and off.
Salient Features
- Large paraffin tank suitable for high throughput lab
- Illuminated wotk platform
- Easy to read and operate control panel
- Mold warmer and cassette bath
- Optional cold spot
- It is programmable for weekdays and each heating zones temperature can be individually set which makes it easy for the user
- Separate heating zones for storage tank, 2 preservation boxes, paraffin nozzle, forceps holder and work platform.
- Excess paraffin collecting tray collects the excess paraffin from different heating zones.
Tissue Embedding Unit MTC-TE
| Brand | Model |
|---|---|
| SAFIRE | MTC-TE 5 LITRES |
Tissue embedding unit has independent heating zones that are controlled through a microprocesor. It has a large storage tank, the tank incorporates the filter which ensures continuous flow of paraffin from the tank. The flow of paraffin from the tank can be controlled manually or through foot switch. The heated operation platform and the forceps holder makes it easy to embed the tissues. The unit has a storage tank, preservation boxes, forceps holder, parafiin nozzle whose heating can be controlled through microprocessor and it can be programmed for the weekdays for both on and off.
Salient Features
- Large paraffin tank suitable for high throughput lab
- Illuminated wotk platform
- Easy to read and operate control panel
- Mold warmer and cassette bath
- Optional cold spot
- It is programmable for weekdays and each heating zones temperature can be individually set which makes it easy for the user
- Separate heating zones for storage tank, 2 preservation boxes, paraffin nozzle, forceps holder and work platform.
- Excess paraffin collecting tray collects the excess paraffin from different heating zones.

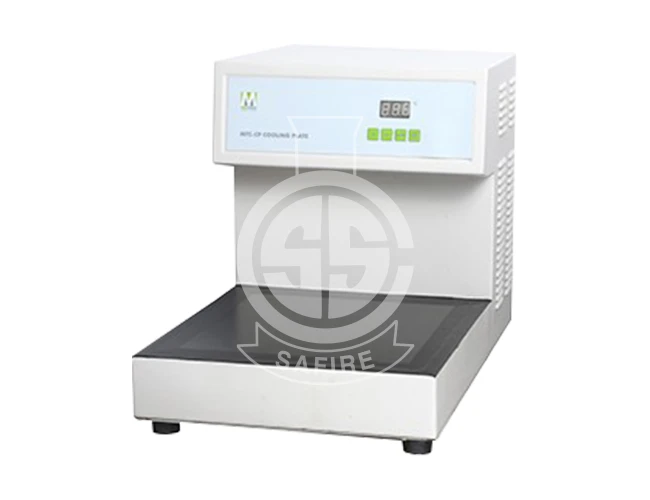

Cooling Unit
| Brand | Model |
|---|---|
| SAFIRE | MTC-CP |
It is used to cool specimen blocks. The temperature can be easily set through keys and it also has a memory to store the pre-used temperature. The large plate can easily accommodate upto 50-80 cassettes.
Technical specification
Capacity : 60 – 80 cassettes
Overall dimension (mm) : 640x370x410
Cover : optional
