Autoclave Equitron
Medica Instrument Mfg Co is an ISO 13485:2007 certified leading manufacturer of laboratory medical instruments since over four decades. EQUITRON is its leading brand – well known for Autoclaves, Baths amongst others. This range is ably supported by its other brands, namely, LAPIZ in Colony Counter, EQUIBATH in Refrigerated Circulating Baths, ROTEVA and EVATOR in Rotary Vacuum Evaporators.
The emphasis and focus at Medica has always been on user friendly products with an attention to detail leading to its product being an asset to any modern setup. The highlights of Medica products are
- Excellent aesthetics and bespoke designs.
- Reliable and consistent performance over a period of time.
- Low down time.
- Assured parts availability.
- Telephonic and email support from qualified Customer Support Engineers.
The products listed are all “plug and play” – easy to install instruments requiring no elaborate installation. All electrical products are supplied with
- Detailed Operation Manual - including installation guidance and basic troubleshooting.
- Test Reports.
- Calibration certificates traceable to National standards.
- Warranty Cards.
- One additional spare gasket is part of standard supply - where applicable.
Equitron Standard (STWL) Vertical Autoclave
| Application | Laboratory |
|---|---|
| Shape | Vertical |
| Temperature Range | 122 Degree C |
| Pressure Range (psi) | 15 psi |
| Model Number | STWL Series |
| Chamber Volume (Litre) | 35,53, 75,133,180 Litre |
| Material | Stainless Steel |
| Brand | Equitron |
| Insulation Wall | Double Wall |
| Automation Grade | Fully Automatic |
| Weight (kg) | 48-119 Kg |
| Mount Type | Floor Mounted Autoclave |
| Approval Certificate | ISO 9001 2008, ISO : 9001 : 2008 |
| Frequency | 50 Hz |
| Installation | Yes |
Equitron Autoclave Applications
- Equitron Standard Vertical Autoclave is ideal for all applications requiring, routine total destruction of all living micro-organisms.
- Ideal for Clinics, Primary Health Centres, Nursing Homes, Hospitals, Doctors and Laboratories.
Equitron Advantages
- Equipped with float switch & electronic circuit for low water level cut off with alarm.
- Automatic purging for efficient sterilization
- A sturdy and tension free Autoclave which can safely be operated repeatedly even in remote places.
- Hydraulically die pressed lid from Stainless Steel plate.
- All internal joints argon welded, ground and polished to give crevice free internals.
- Industrial grade energy efficient ring type heater, custom made for Autoclaves, thus reducing power bills by 16 to 40%
| Model | Working Chamber Size (Ø x D) | Capacity liters | Carrier (Ø x D) | Heater | Gross Dimension (W/D/H) / Weight |
|---|---|---|---|---|---|
| #7421STWL | 300 x 500mm (12 x 20″) | 35 | 1 of 250 x 450 mm | 1.80 kW | 820 x 620 x 1170 mm/ 48 kg |
| #7431STWL | 350 x 550mm (14 x 22″) | 53 | 1 of 300 x 500 mm | 2.25 kW | 870 x 670 x 1230 mm/ 58 kg |
| #7440STWL | 400 x 600mm (16 x 24″) | 75 | 1 of 350 x 550 mm | 3.00 kW | 970 x 720 x 1290 mm/ 69 kg |
| #7441STWL | 450 x 710mm (18 x 28″) | 113 | 2 of 400 x 330 mm | 3.50 kW | 1020 x 770 x 1350 mm/ 85 kg |
| #7451STWL | 550 x 760mm (22 x 30″) | 180 | 2 of 500 x 350 mm | 5.00 kW | 1150 x 890 x 1420 mm / 119 kg |
Equitron FA Series Fully Automatic Vertical Autoclave
| Application | Laboratory |
|---|---|
| Shape | Vertical |
| Temperature Range | 122 Degree C |
| Pressure Range (psi) | 15-30 psi |
| Chamber Volume (Litre) | 35,53,75,113,180 Liter |
| Material | Stainless Steel |
| Brand | Equitron |
| Automation Grade | Fully Automatic |
| Mount Type | Floor Mounted Autoclave |
| Approval Certificate | ISO 9001 2008, CE Certificate, ISO : 9001 : 2008 |
| Warranty | 1 Year |
| Frequency | 50 Hz |
| Installation | Yes |
Applications
- Equitron Fully Automatic Vertical Autoclaves are ideal for all critical applications requiring assured and reliable total destruction of all living microorganisms.
- Ideal for Pharma QC / QA / Micro / R & D, Chemical Plants, Bio-Labs, Waste treatment, Water & Air Pollution Labs, Fisheries, Mineral Water, Food, Beverage & Distillery Plants, Flight Kitchens, Hotels, Hospitals, Nursing Homes, Polyclinics, specialty Doctors and all applications requiring assured sterilization.
| Model | Working Chamber Size (Ø x D) | Capacity liters | Carrier (Ø x D) | Heater | Gross Dimension (W/D/H) / Weight |
|---|---|---|---|---|---|
| #7421STWL | 300 x 500mm (12 x 20″) | 35 | 1 of 250 x 450 mm | 1.80 kW | 820 x 620 x 1170 mm/ 48 kg |
| #7431STWL | 350 x 550mm (14 x 22″) | 53 | 1 of 300 x 500 mm | 2.25 kW | 870 x 670 x 1230 mm/ 58 kg |
| #7440STWL | 400 x 600mm (16 x 24″) | 75 | 1 of 350 x 550 mm | 3.00 kW | 970 x 720 x 1290 mm/ 69 kg |
| #7441STWL | 450 x 710mm (18 x 28″) | 113 | 2 of 400 x 330 mm | 3.50 kW | 1020 x 770 x 1350 mm/ 85 kg |
| #7451STWL | 550 x 760mm (22 x 30″) | 180 | 2 of 500 x 350 mm | 5.00 kW | 1150 x 890 x 1420 mm / 119 kg |
Equitron Advantages
- Enables reproducibility of results as full cycle including purging of stale air, sterilizing hold time, cycle end with exhaust of pressure is automatic, requiring no human intervention.
-
Widest options for documenting available:
- Independent scanning, displaying and printing to inbuilt printer
- Independent Chart Recorder - Supplied with Test Certificates & calibration reports along with traceablities for Temperature Controller and Pressure Gauge.
- µProcessor based Controller with time and temperature programmable by user.
- A backlit alphanumeric two line 32 characters LCD display, displays all information including process and set values at a glance, eliminating guesswork.
- Operating and Display range up to 122°C (135°C for models #7423 & #7433) in 0.1°C resolution.
- Pt100 sensor, enabling precise monitoring.
- Low water level alarm and cut off.
Equitron (PAD) Automatic Digital Vertical Autoclave
| Chamber Volume | 35-150ltr |
|---|---|
| Shape | Vertical |
| Chamber Dimensions | 250*450mm |
| Temperature Range | 121 Degree C |
| Pressure Range (psi) | 15 psi |
| Model Number | PAD Series |
| Chamber Volume (Litre) | 35-180 Litre |
| Material | Stainless Steel |
| Brand | Equitron |
| Insulation Wall | Double Wall |
| Automation Grade | Fully Automatic |
| Mount Type | Floor Mounted Autoclave |
| Approval Certificate | ISO 9001 2008, ISO : 9001 : 2008 |
| Frequency | 50 Hz |
| Installation | Yes |
Applications
- Equitron Preset Automatic Digital Autoclaves are ideal for all applications requiring, routine destruction of all living micro-organisms.
- Ideal for all Hospitals, Nursing Homes, Speciality Doctors, Microbiology Labs, R&D and Industry.
Equitron Advantages
- Automatic purging for efficient sterilization.
- Low water level cut off.
- Fitted with a Safely Valve / Fusible Safety Plug for added safety.
- End of cycle buzzer.
- Supplied with traceable certificate for Pressure Gauge and temperature Indicator.
| Model | Working Chamber Size (Ø x D) / Capacity | Carrier (Ø x D) | Heater | Gross Dimension / Weight |
|---|---|---|---|---|
| #7421PAD | 300 x 500 mm (12×20’’) / 35 L | 1 of 250 x 450 mm | 1.80 kW | 820 x 620 x 1170 mm / 50 kg |
| #7431PAD | 350 x 550 mm (14×22’’) / 53 L | 1 of 300 x 500 mm | 2.25 kW | 870 x 670 x 1230 mm / 60 kg |
| #7440PAD | 400 x 600 mm (16×24’’) / 75 L | 1 of 350 x 550 mm | 3.00 kW | 970 x 720 x 1290 mm / 69 kg |
| #7441PAD | 450 x 710 mm (18×28’’) / 113 L | 2 of 400 x 330 mm | 3.50 kW | 1020 x 770 x 1350 mm / 88 kg |
| #7451PAD | 550 x 760 mm (22×30’’) / 180 L | 2 of 500 x 350 mm | 5.00 kW | 1150 x 890 x 1420 mm / 121 kg |

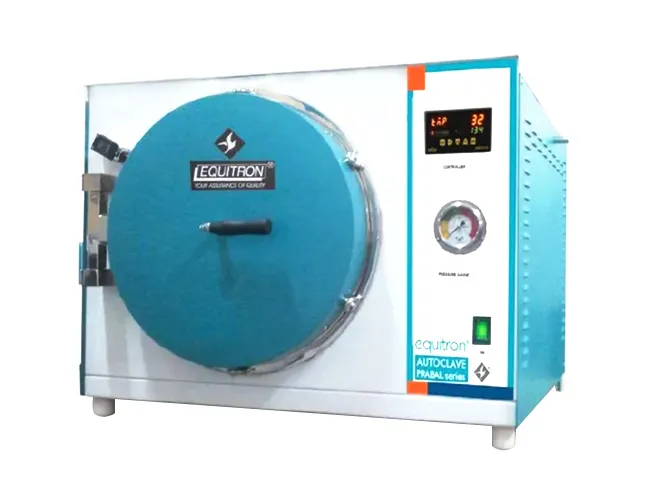

Equitron #7471-16 Table Top Autoclave
| Temperature Range | Up To 134 Degree C |
|---|---|
| Model Number | #7471-16 |
| Material | Stainless Steel |
| Working Chamber Size ( x D)/ Liters | 230 x 400 mm |
| Chamber Volume (Litre) | 16 Liter |
| Gross Dimension (mm) | 790 x 790 x 710 mm |
| Brand | Equitron |
| Shape | Horizontal |
| Weight (kg) | 81.4 Kg |
| No. of Trays | 2 Tray |
| Approval Certificate | ISO : 9001 : 2008, CE Certificate |
| Pressure Range (psi) | 15-20 psi |
| Warranty | 1 Year |
Equitron Table Top Sterilizers are provided with Microprocessor based control panel which gives assured sterilization & repeatability. These Front Loading Autoclaves are provided with inbuilt water reservoir & drying facility. This type of front loading autoclave is ideal choice for doctors.
Applications
- Equitron Table Top High Speed Sterilizers are ideal for all applications requiring rapid, reliable and total destruction of all living microorganisms.
- Ideal for Ophthalmic Surgeons, Dental Surgeons, Surgical Doctors, Polyclinics and Hospitals.
| Model | Working Chamber Size (Ø x D) / Capacity | Carrier (Ø x D) | Heater | Gross Dimension / Weight |
|---|---|---|---|---|
| #7421PAD | 300 x 500 mm (12×20’’) / 35 L | 1 of 250 x 450 mm | 1.80 kW | 820 x 620 x 1170 mm / 50 kg |
| #7431PAD | 350 x 550 mm (14×22’’) / 53 L | 1 of 300 x 500 mm | 2.25 kW | 870 x 670 x 1230 mm / 60 kg |
| #7440PAD | 400 x 600 mm (16×24’’) / 75 L | 1 of 350 x 550 mm | 3.00 kW | 970 x 720 x 1290 mm / 69 kg |
| #7441PAD | 450 x 710 mm (18×28’’) / 113 L | 2 of 400 x 330 mm | 3.50 kW | 1020 x 770 x 1350 mm / 88 kg |
| #7451PAD | 550 x 760 mm (22×30’’) / 180 L | 2 of 500 x 350 mm | 5.00 kW | 1150 x 890 x 1420 mm / 121 kg |
Equitron Advantages
- Sterilizing, exhaust of water & steam drying are fully automatic.
- A totally hassle and tension free sterilizer which can even be kept inside an operation theater.
- Results reproducible because full cycle is automatic, requiring no human intervention.
- Single lever pronged closure system with patented Silicone Gasket (registered design No. 208774.)
- µP Controller with following parameters programmable by user: Sterilizer Time: up to 99 minutes. Drying time: up to 99 minutes.
- Valves for water filing and exhaust.
- Drying with door open facility.
Class B Autoclave
| Temperature Range | 134 Degree C |
|---|---|
| Pressure Range (psi) | 30 |
| Chamber Volume (Litre) | 18 Litre |
| Model Number | 7474B-18 |
| Size | 250X350 |
| Insulation Wall | Single Wall |
| Brand | Equitron |
| Mount Type | Table Top Autoclave |
| Heater (kW) | 2.4 KW |
| Weight (kg) | 53 Kg |
| Warranty | 1 Year |
| Frequency | 50 Hz |
| Installation | Yes |
Equitron-CLB Series Class B Autoclave is ideal for the Healthcare professional requiring top of the line sterilization for those hard to sterilize items. It can e used for solid, hollow, porous, wrapped loads as well as cotton.
Applications find in
- Ophthalmology
- Dental Clinics
- CSSD, Clinics, Hospitals
- Cosmetic Surgery, Pedicure, Tattoo & Veterinary
- Biological Labs

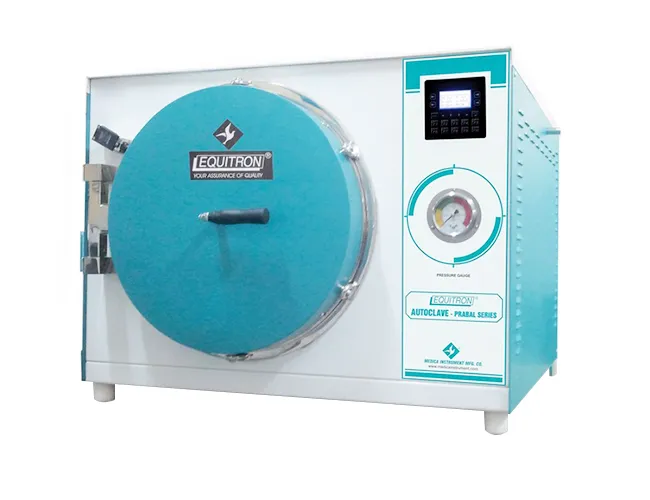

Table Top Equitron Autoclave
| Application | Laboratory |
|---|---|
| Material | Mild Steel |
| Mount Type | Table Top Autoclave |
Applications
- EQUITRON Prabal series w/Dry is ideal for sterilisation in Healthcare, Pharma QC, QA, Micro, R&D; Chemical Plants, Bio-Labs, Water & Air Pollution Labs, Fisheries, Mineral Water Plants, Food, Beverage & Distilleries, Flight Kitchens, Mass Kitchens and Hygiene dept at Five Star Hotels.
Equitron Advantages
- Energy efficient industrial grade high temperature heaters - save power upto 33%.
- Automatic purging of steam and exhaust with water.
- Dual scales of psi and kPA with temperature readout.
- Accurate temperature control with display of all process and set values on the graphical display.
- Electrical on / off safety switch.
- Easy draining of water reservoir.
- Boltable rear legs prevent tip-over.
Construction
- Leak-proof sealing with design registered gasket design.
- Safe and sturdy chamber manufactured to ASME standards in SS 304.
- Abrasion resistance and durable finish by heat cured epoxy coating on steel exterior.
- Convenient and fast single lever locking of lid.
- Three trays.
| Table Top-Front Loading – Prabal | |||
|---|---|---|---|
| Model | Working Chamber Size (Ø x D ) / Capacity | Trays | Gross Dimension / Weight |
| #7482 | 300 x 500 mm / 35 L | 2 nos | 1030 X 900 X 820 / 135 kg |
| #7484 | 400 x 600mm / 75 L | 3 nos | 1130 X 1000 X 920 /175 kg |
